Enhanced Raster Images in GstarCAD 2022
More raster images formats are supported in GstarCAD 2022 and also have high-quality display and plotting effect, raster images with transparency can also be plotted.
How to export CAD drawing to high-resolution image
In many industries, people would need to import CAD drawing to high-resolution image such as JPG、TIF、TGA、PDF、EPS, etc. Then how can we export CAD drawings to image with high-resolution?
How to remove the redundant part of an image ?
CAD has provided CLIP command which can be used to clip company logo, which is relatively regular in shape. But when it comes to a plant, a person or building, it would be much more inconvenient to use the CLIP command.

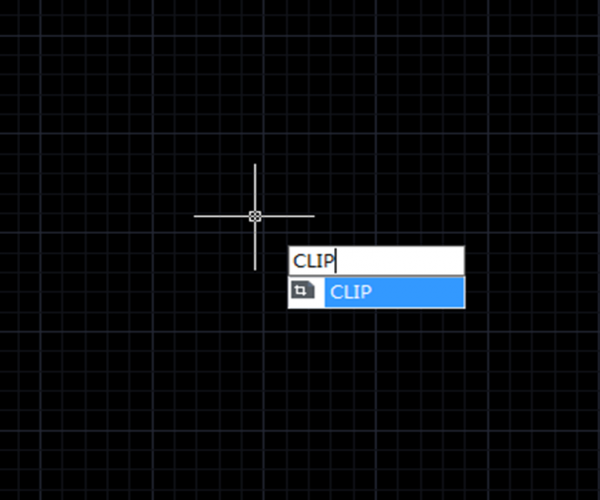

How to clip block, Xref, image or viewport?
CAD system has different clip commands for different objects: to clip image, the command is IMAGECLIP; to clip viewport, the command is VPCLIP; to clip block and Xref, the command is XCLIP.

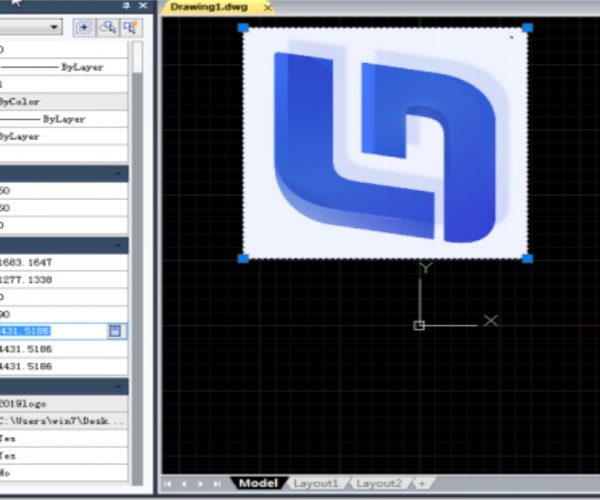

Why I can’t rotate the inserted OLE image?
Inserting image like this has a problem: when we copy the drawing to others, we will have to attach the image file, otherwise, the image won’t show in the drawing that we send to others. That’s why most of the time CAD users prefer to insert an OLE image since the OLE image is saved in the drawing and there is no need to attach the image again.
