How to move an object using a displacement

Click Home tab, as shown in the following picture,

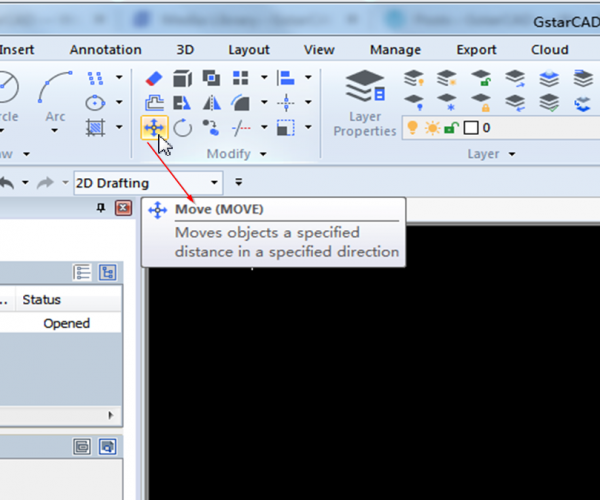

Click the Move icon in the Modify Panel, as shown in the following picture,

Then select the object that you want to move and press Enter to confirm,

When prompted to Specify base point or displacement, as shown in the following picture,

You can enter the displacement, but please note that there is no need to include “@” here.

Then you are prompted to specify second point or <use first point as displacement>, as shown in the following picture,
