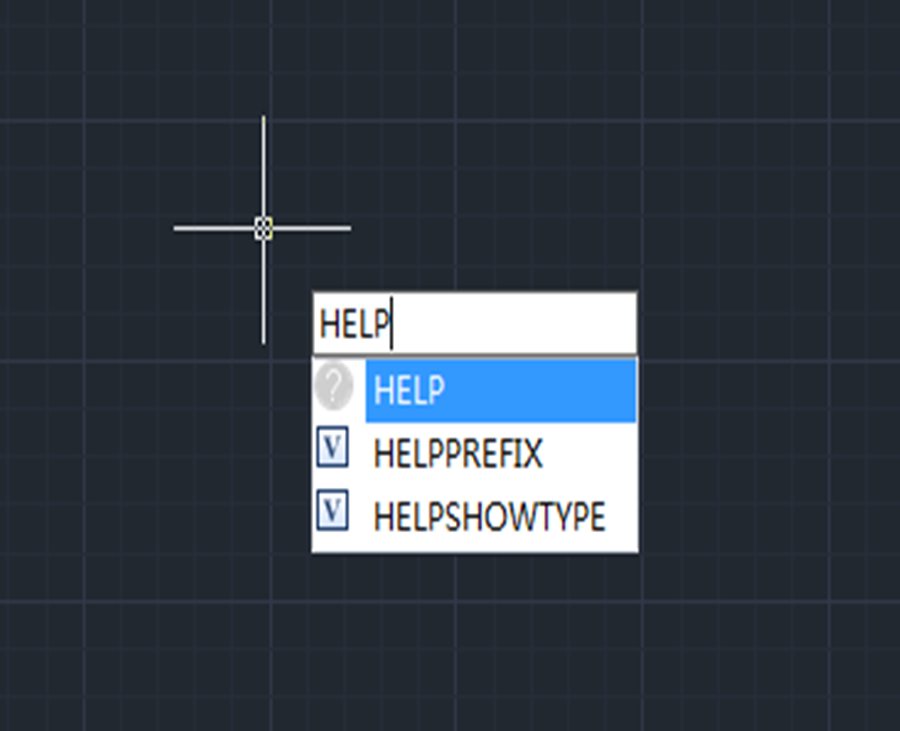

Enhanced User Experience with Online Help in GstarCAD 2023
Online Help is available in GstarCAD 2023 and provides regularly updated information.
Plot with Transparency in GstarCAD 2022
GstarCAD 2022 has greatly improved its “Plot with transparency”.
Enhanced Raster Images in GstarCAD 2022
More raster images formats are supported in GstarCAD 2022 and also have high-quality display and plotting effect, raster images with transparency can also be plotted.
Geometric Center
A new snap option (Geometric Center) has been added to improve the snap center of any kind of polygonal object.
Plot Options
Improve 2D/3D drawings printing quality via Plot with transparency and Shade plot options. With Display plot styles option you can assign different plot style tables to each layout in your…
Command Preview
The command preview provides you a quick feedback of the active command. It shows you exactly how the objects will look when the Trim, Extend and Hatch command is executed.…
User Interface
Ribbon, command line and status bar enhancements provide better user design experience. Show or hide ribbon to increase work space are, type any command and visualize it at command line…
Hatch Related System Variables
Some hatch related system variables have been implemented: HPANNOTATIVE, HPISLANDDETECTION, HPMAXAREAS, HPORIGINSTOREASDEFAUL, HPQUICKPREVTIMEOUT, HPLASTPATTERN HPLAYER, HPLINETYPE, HPPICKMODE, HPRELATIVEPS.
Redefine Block
Now design center offers a quick way to update instances of block. Redefining a block allows you to overwrite each block instance without changing the block name, all while keeping…
Import Layout as Sheet
Now you can “import” additional drawing layouts into your sheet set file using the Sheet Set Manager. When import layouts as sheets you are creating a new pointer to an…
