How to work on text with TXT2MTXT command
The TXT2MTXT is used to convert or combine single-line or multiline text objects into one or more multiline text objects.
How to access to the command
* When using 2D Drafting workspace, find Express > Texts > Convert Text to Mtext (TXT2MTXT), shown as below,

* When using GstarCAD Classic workspace, find Text > Convert Text to Mtext, shown as below,

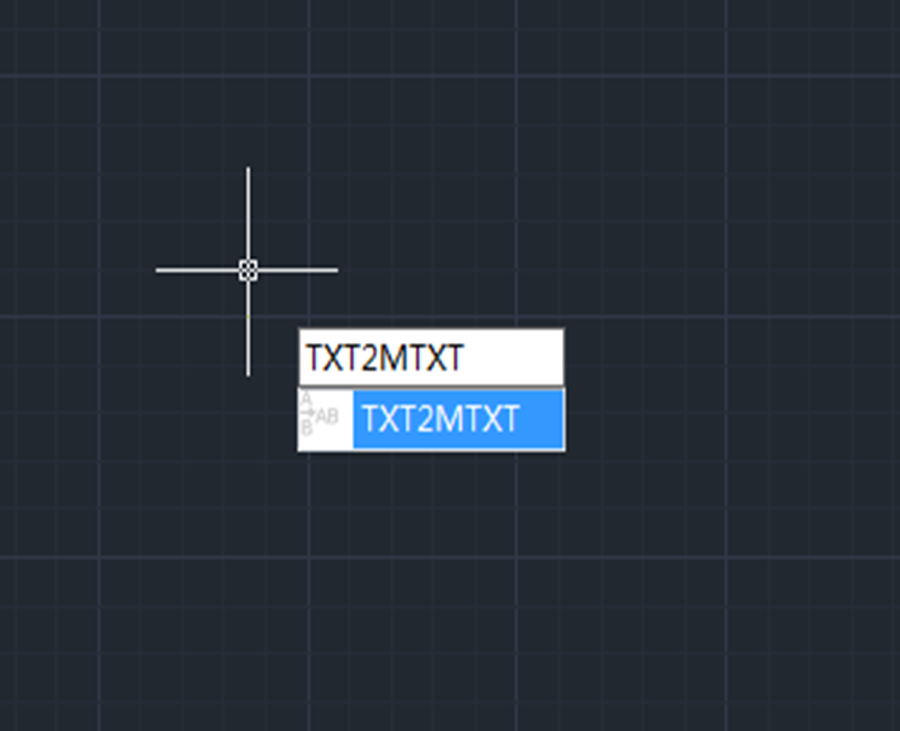

* Enter TXT2MTXT and press Enter key,

After executing the command, the following Text to Mtext Options dialog box will pop up and users can specify the settings option.

Merge as Single MText: Combines the selected text objects into a single mtext object.
Text ordering-Selection set order: Specifies the order of the selected text by manual selection.
Text ordering-Sort top-down: Specifies the order of the selected text by descending vertical position.
Create word-wrap Mtext: Combines all the lines of text into a single line, and then wraps any text that exceeds the width of the mtext object to the next line.
See how to simply use it in action
